Overview

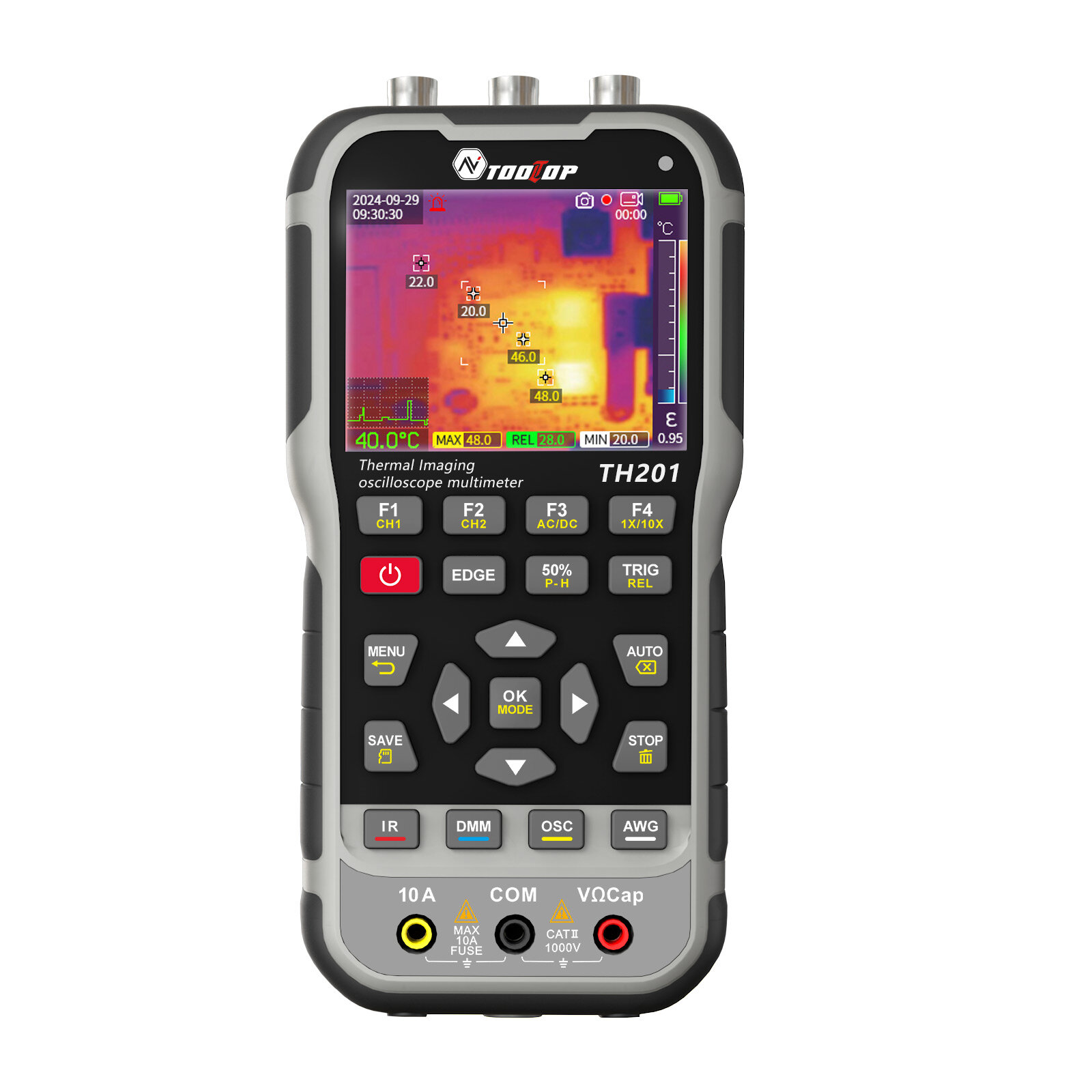

The TH201 handheld oscilloscope multimeter with thermal imaging is a professional-grade 4-in-1 portable diagnostic tool designed for electrical engineers, maintenance technicians, and industrial field service applications.
It integrates four essential instruments into one compact device:

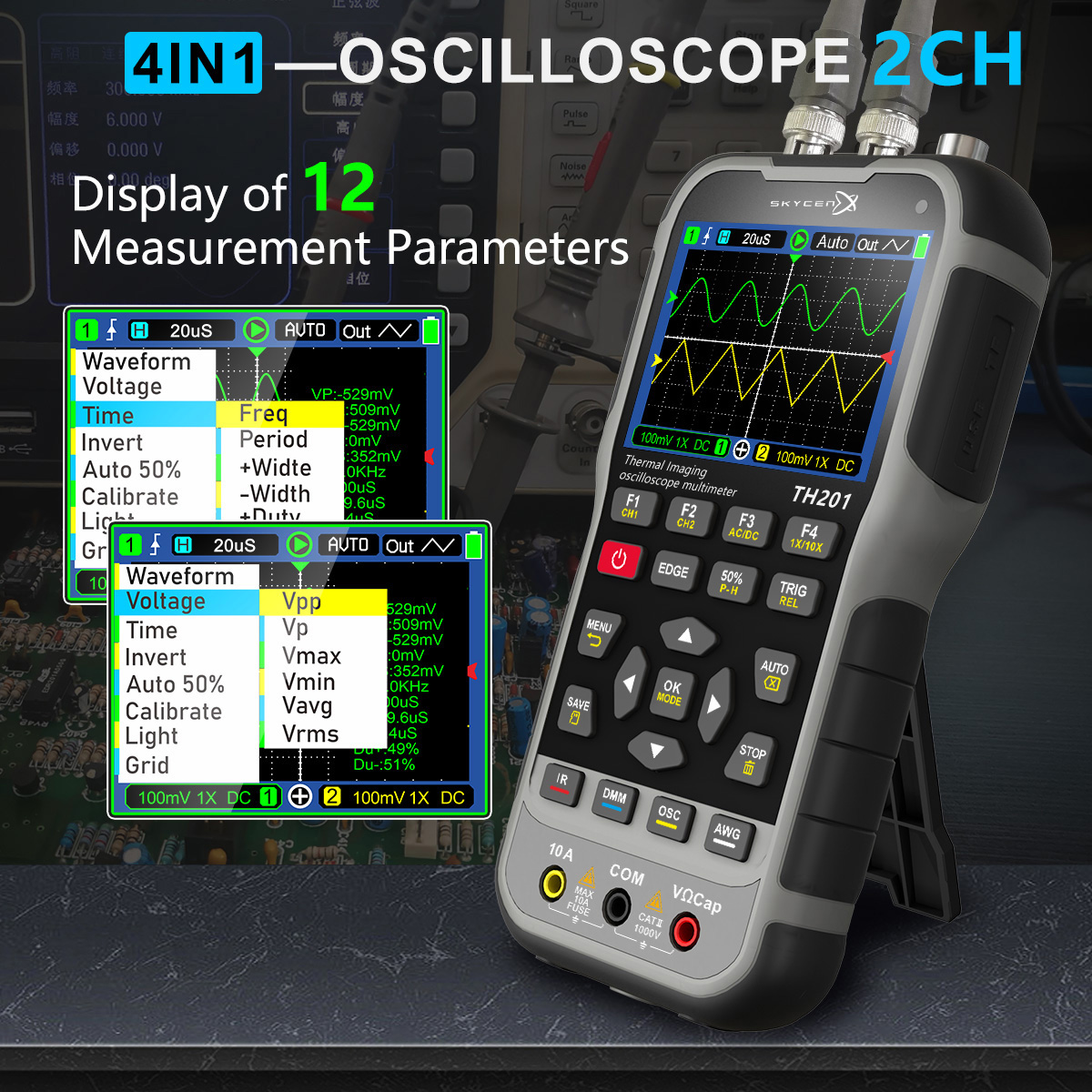

- Dual-channel digital oscilloscope

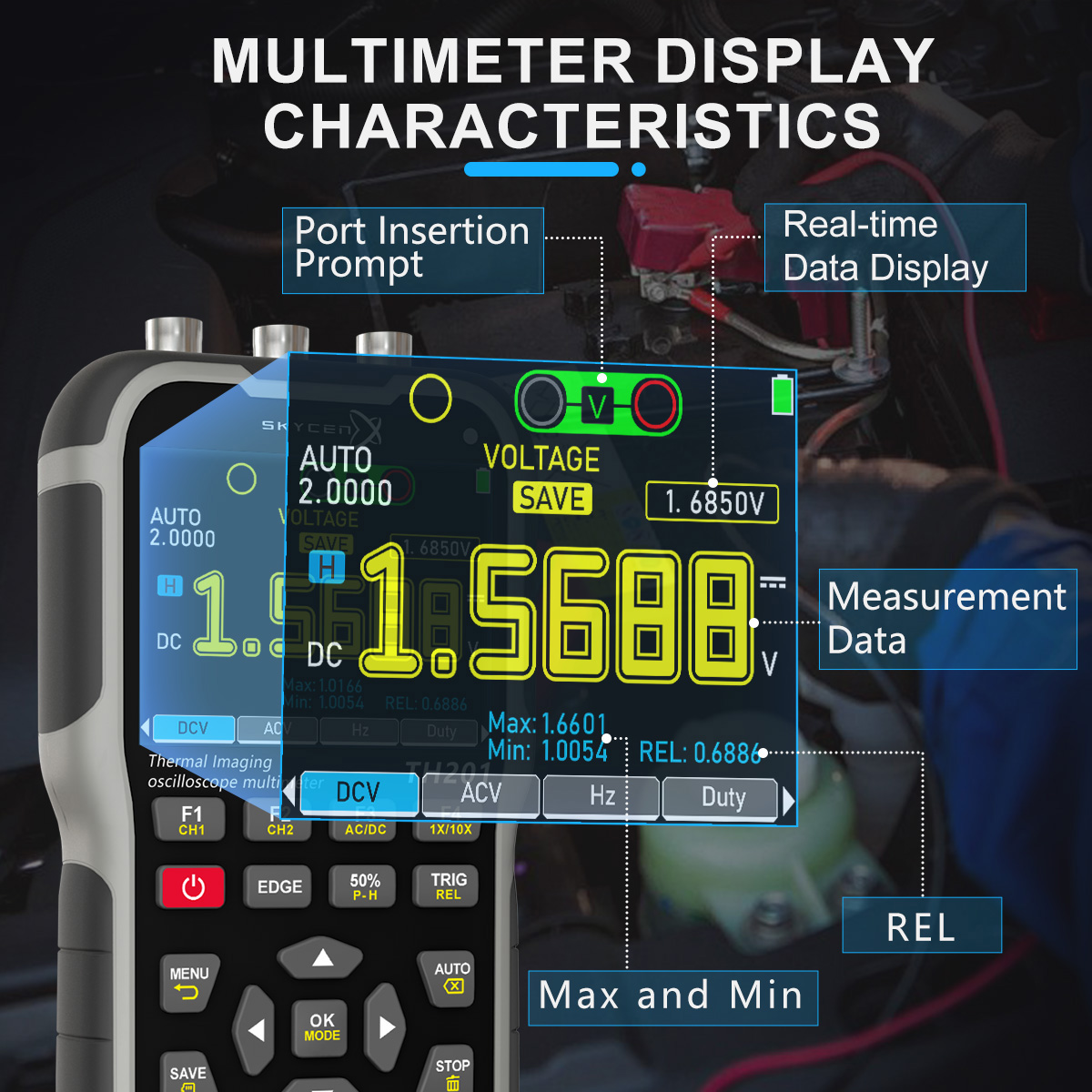

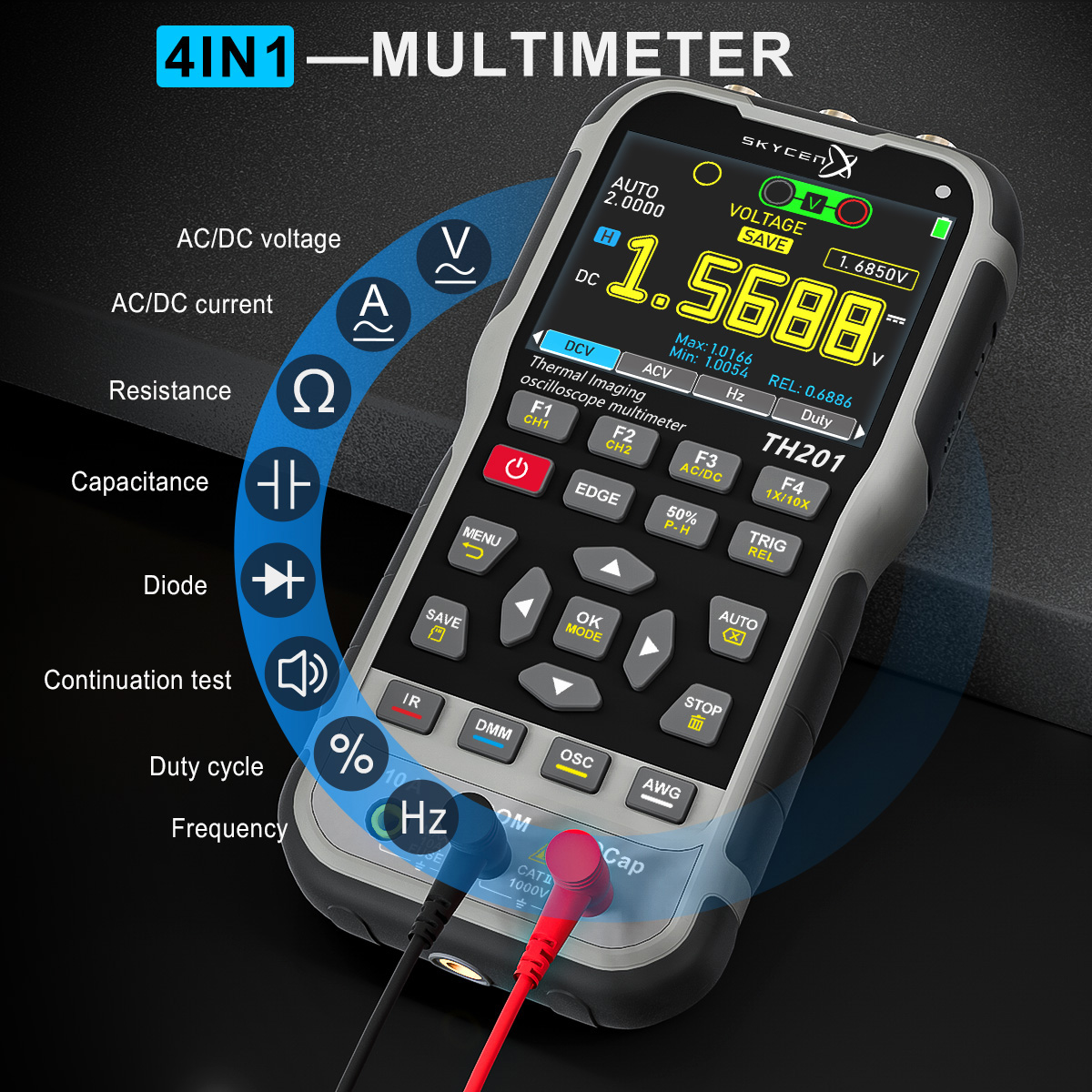

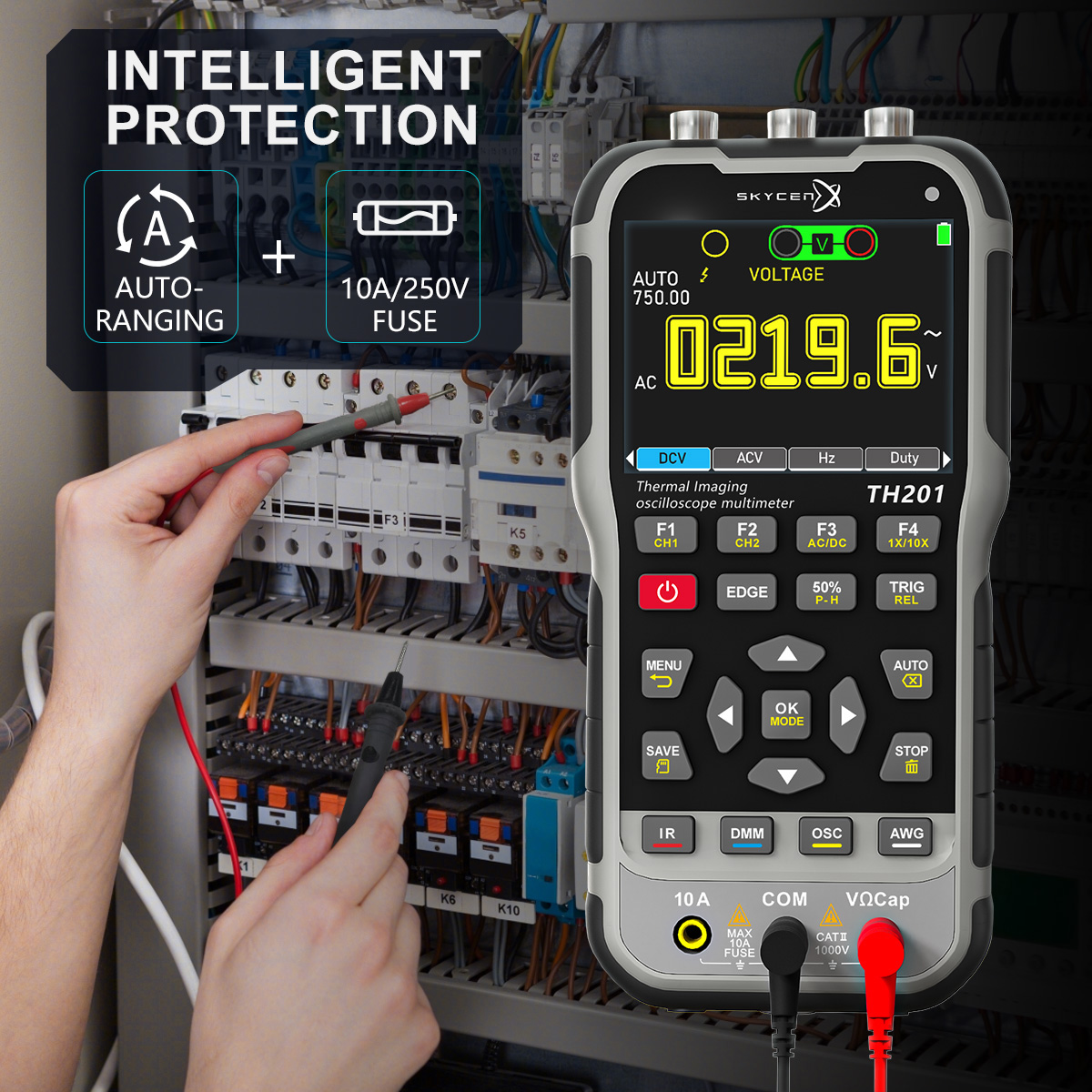

- True RMS multimeter
- Infrared thermal imager
- Function signal generator
Compared with traditional standalone instruments, TH201 significantly reduces equipment load while improving diagnostic efficiency in complex electrical environments.
Key Features

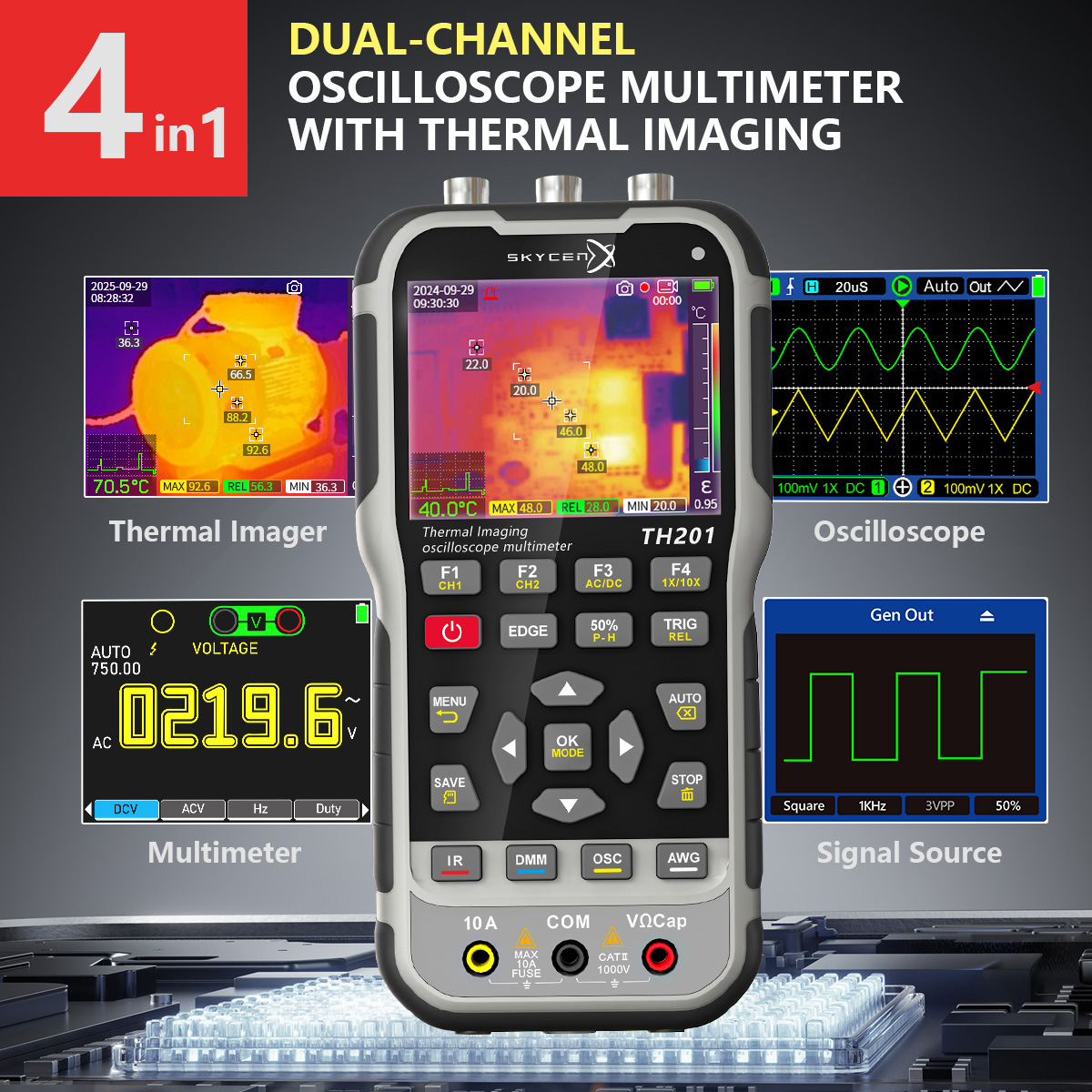

🔹 1. True 4-in-1 Integrated Design
Replace four separate tools with one compact system:
- Oscilloscope (signal analysis)
- Multimeter (electrical measurement)
- Thermal imaging camera (heat detection)
- Signal generator (waveform output)
Ideal for industrial troubleshooting and field maintenance.

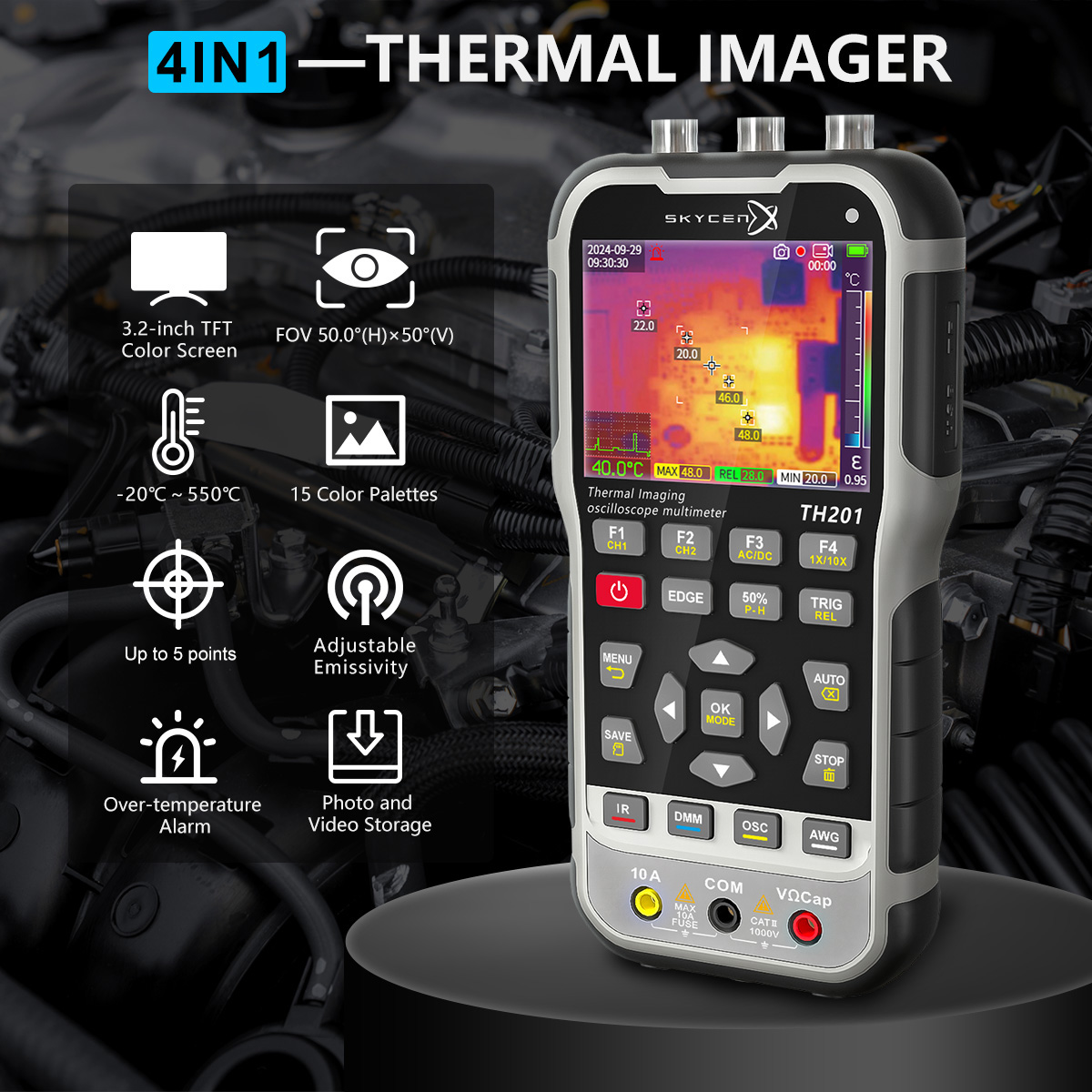

🔹 2. High-Precision Thermal Imaging System
- Resolution: 288 × 240 (IR 96 × 96 sensor enhancement)
- Temperature range: -20°C to 550°C (-4°F to 1022°F)
- Accuracy: ±2°C

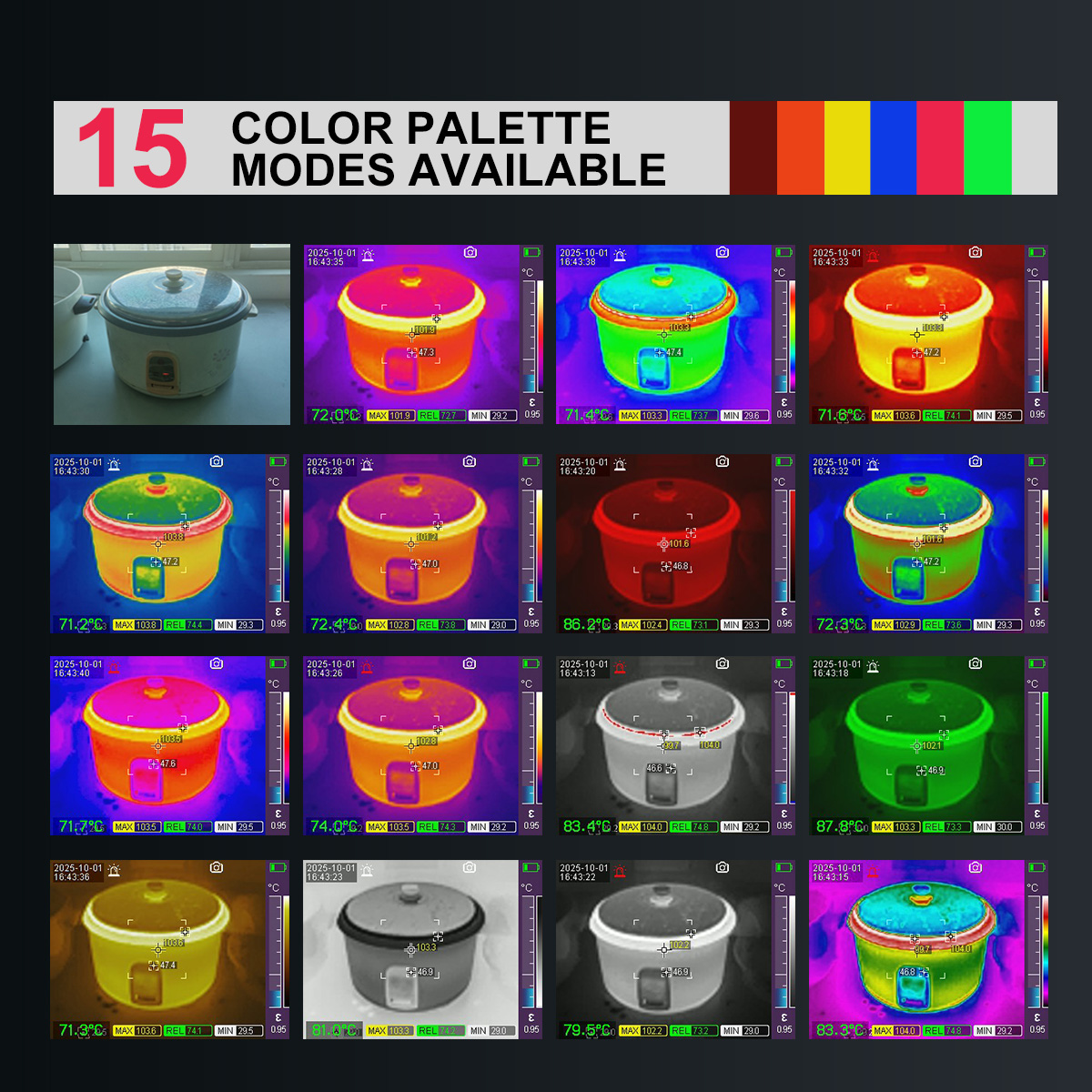

- 15 color palettes for different environments

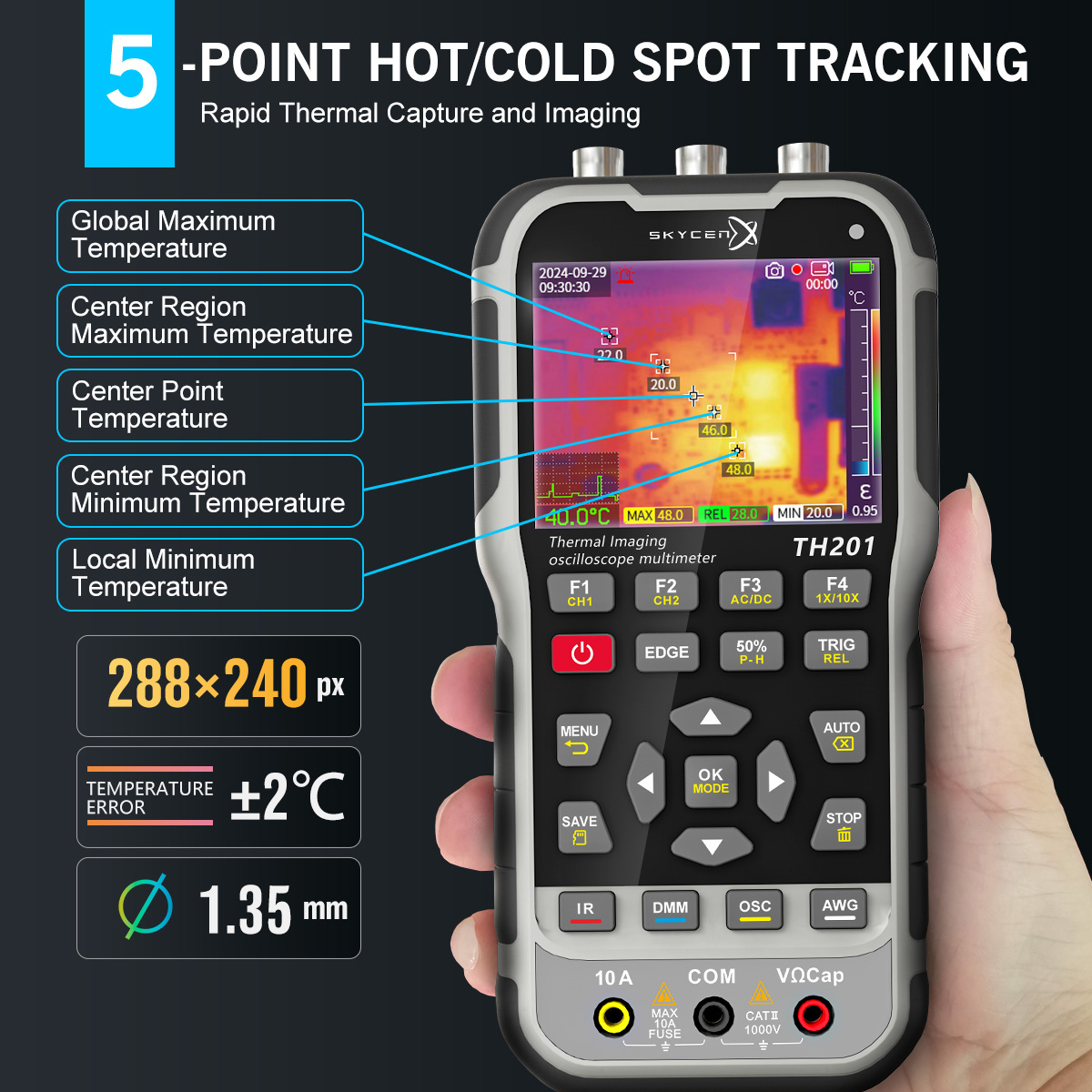

- Supports hot/cold spot tracking (up to 5 points)

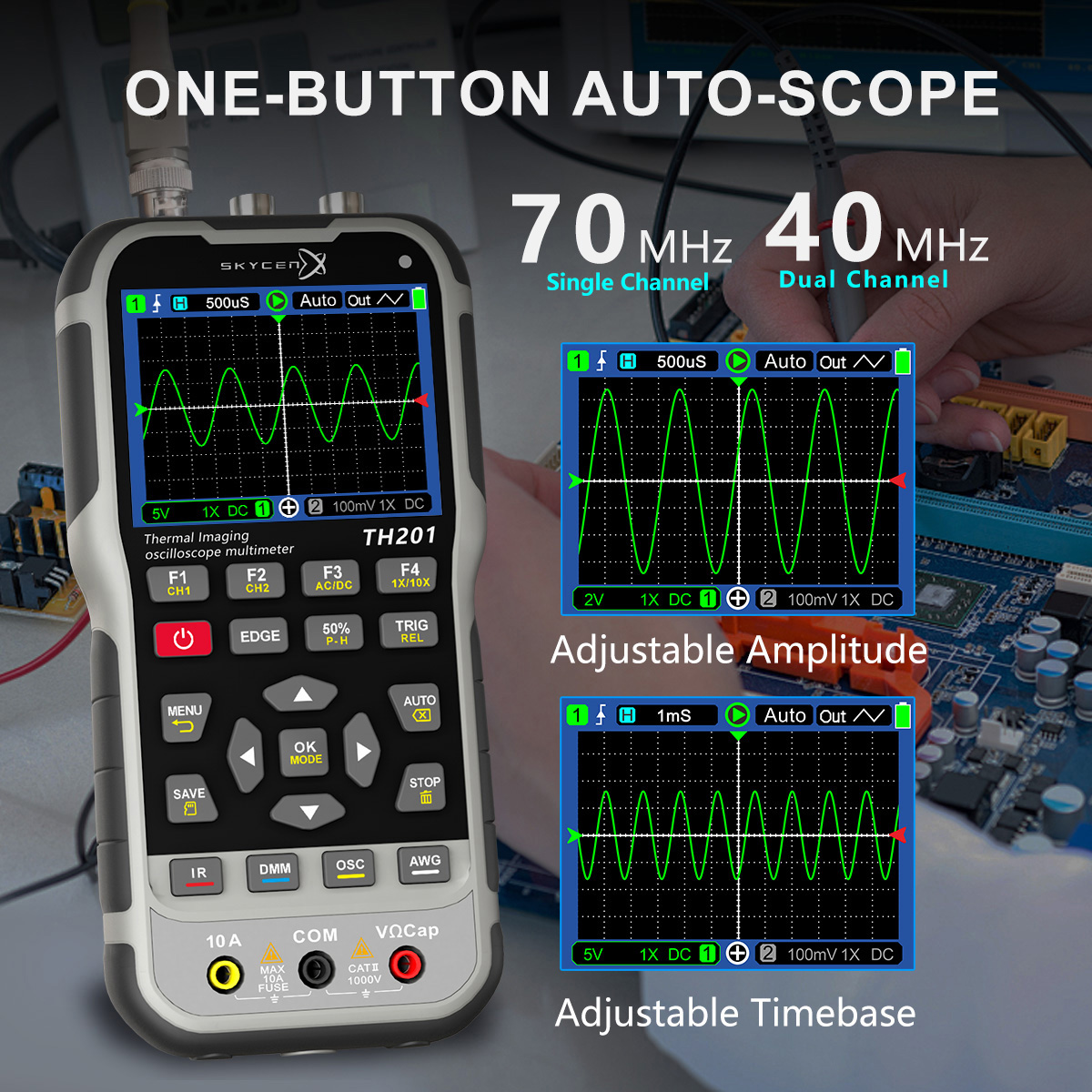

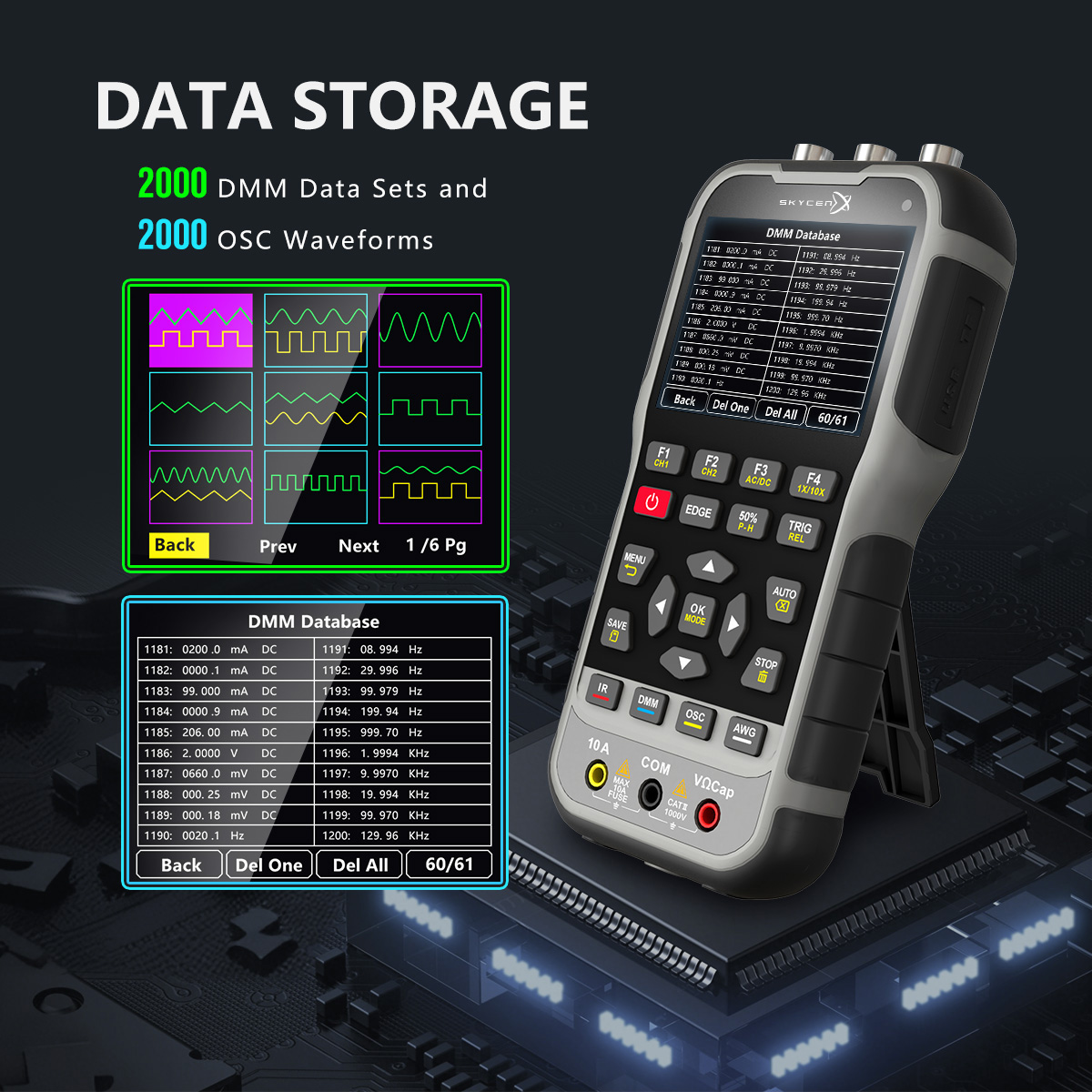

🔹 3. Professional Oscilloscope Performance
- Bandwidth: 70MHz (single channel)
- Bandwidth: 40MHz (dual channel)

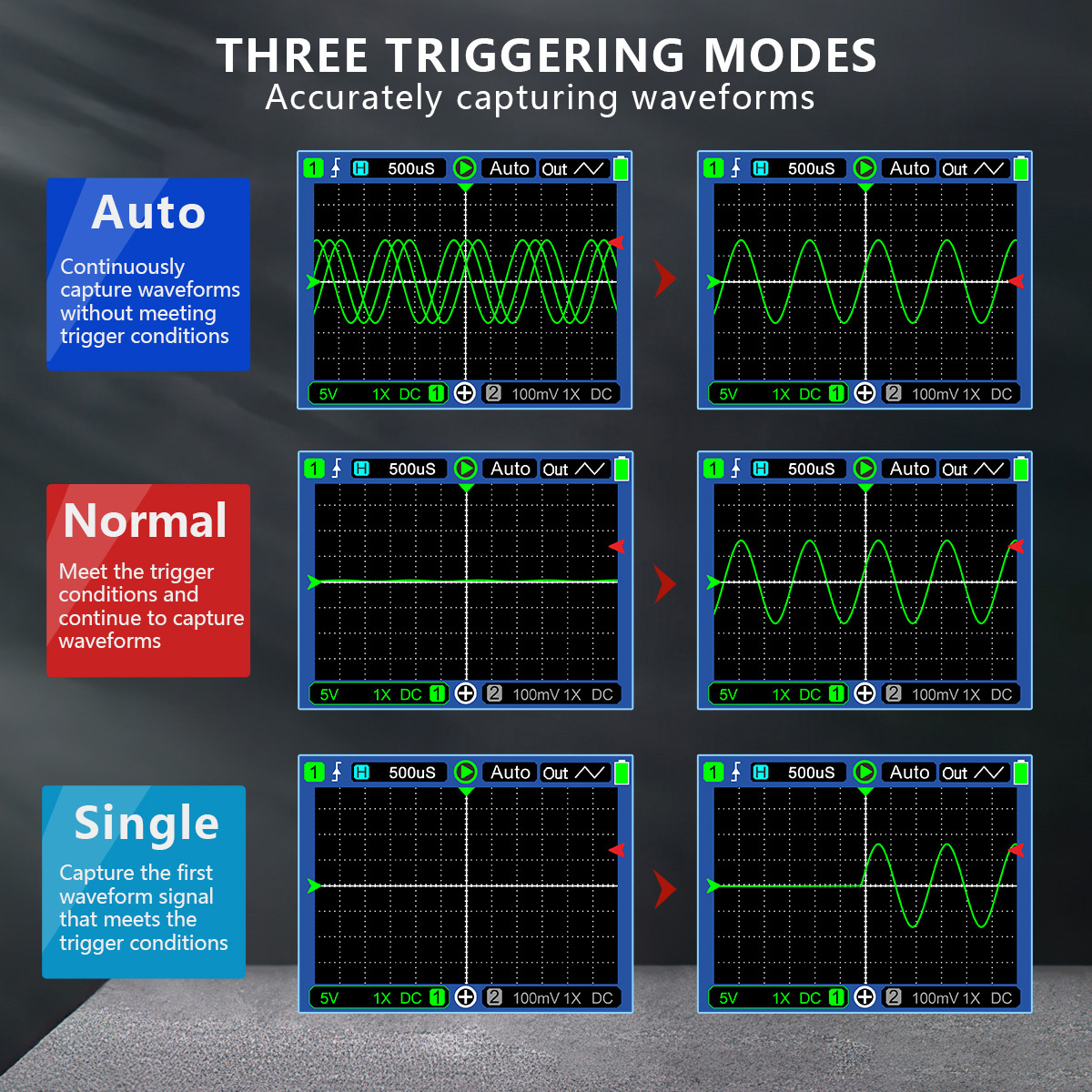

- High sampling stability for industrial signals
- One-touch auto setup for fast waveform displa

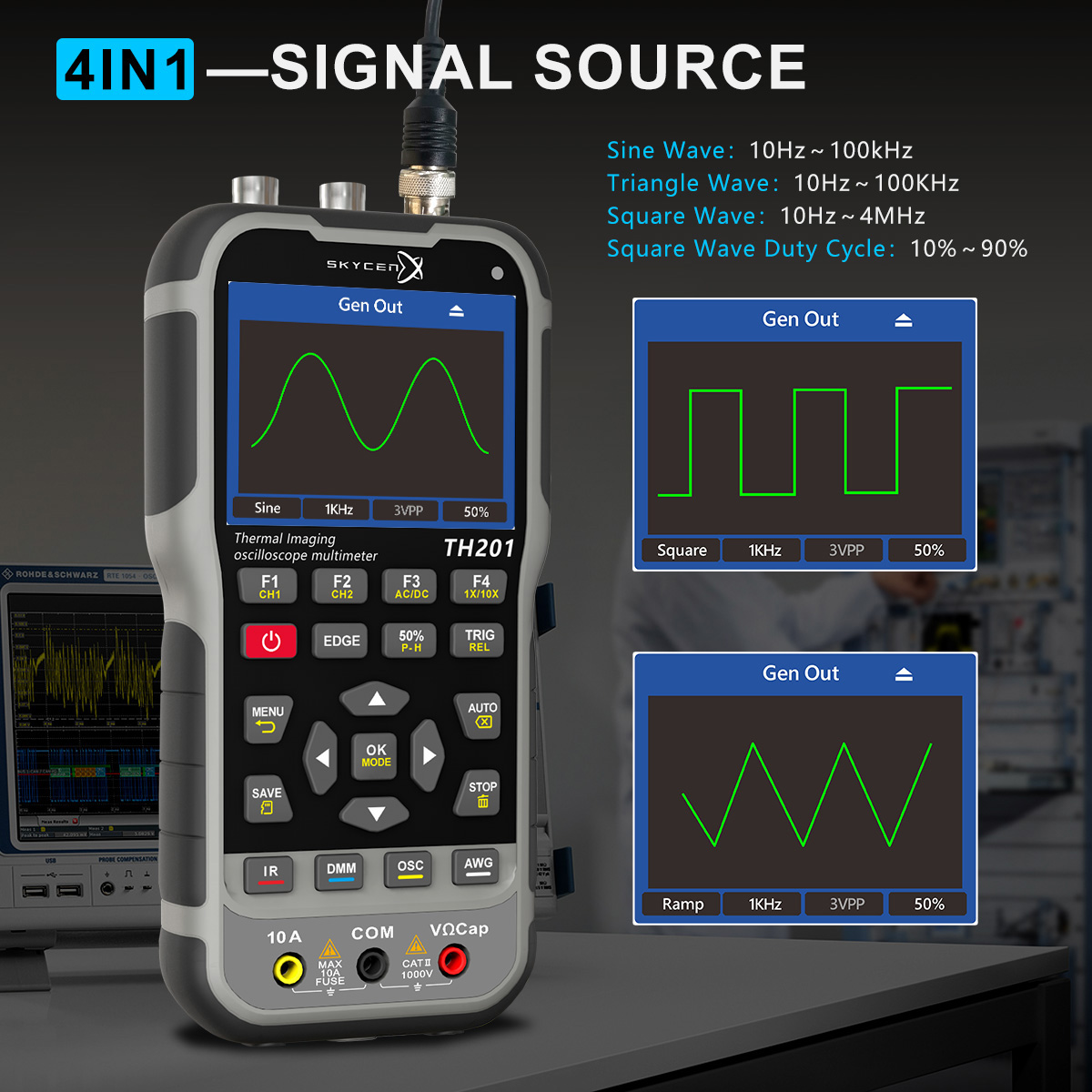

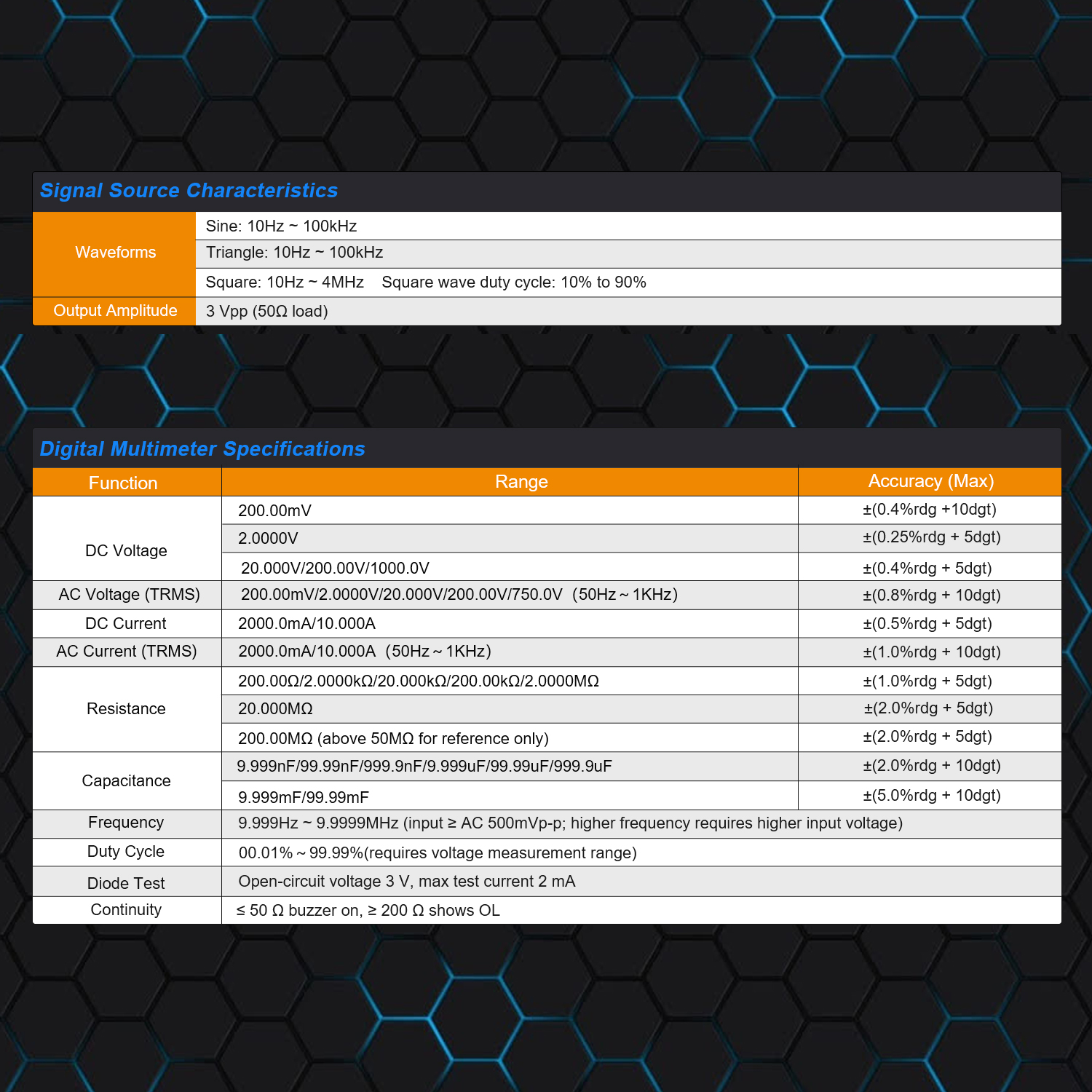

🔹 4. Built-in Signal Generator
- Waveforms: Sine / Square / Triangle
- Adjustable frequency up to 4MHz
- Duty cycle control
- Stable output for testing and calibration
🔹 5. Portable Industrial Design
- 3.2-inch TFT color display
- Handheld compact structure

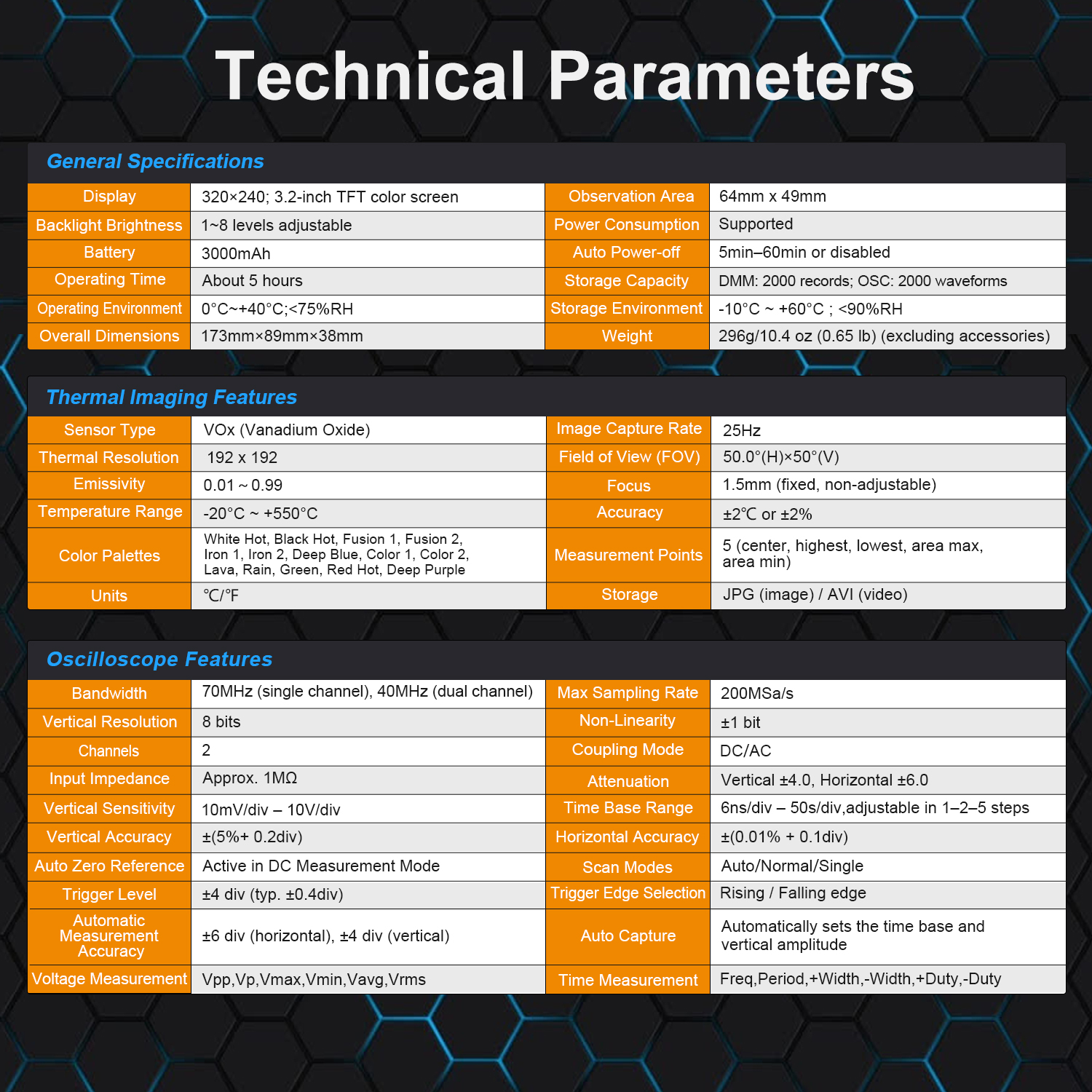

Technical Specifications
Model: TH201
Type: 4-in-1 Handheld Oscilloscope Multimeter with Thermal Imaging
Display
- 3.2-inch TFT color screen
Thermal Imaging
- Range: -20°C to 550°C
- Resolution: 288 × 240 (enhanced IR 96 × 96)
- Accuracy: ±2°C
- Lens FOV: 50° × 50°
- Color palettes: 15 modes
Oscilloscope
- Bandwidth: 70MHz (single channel)
- Bandwidth: 40MHz (dual channel)

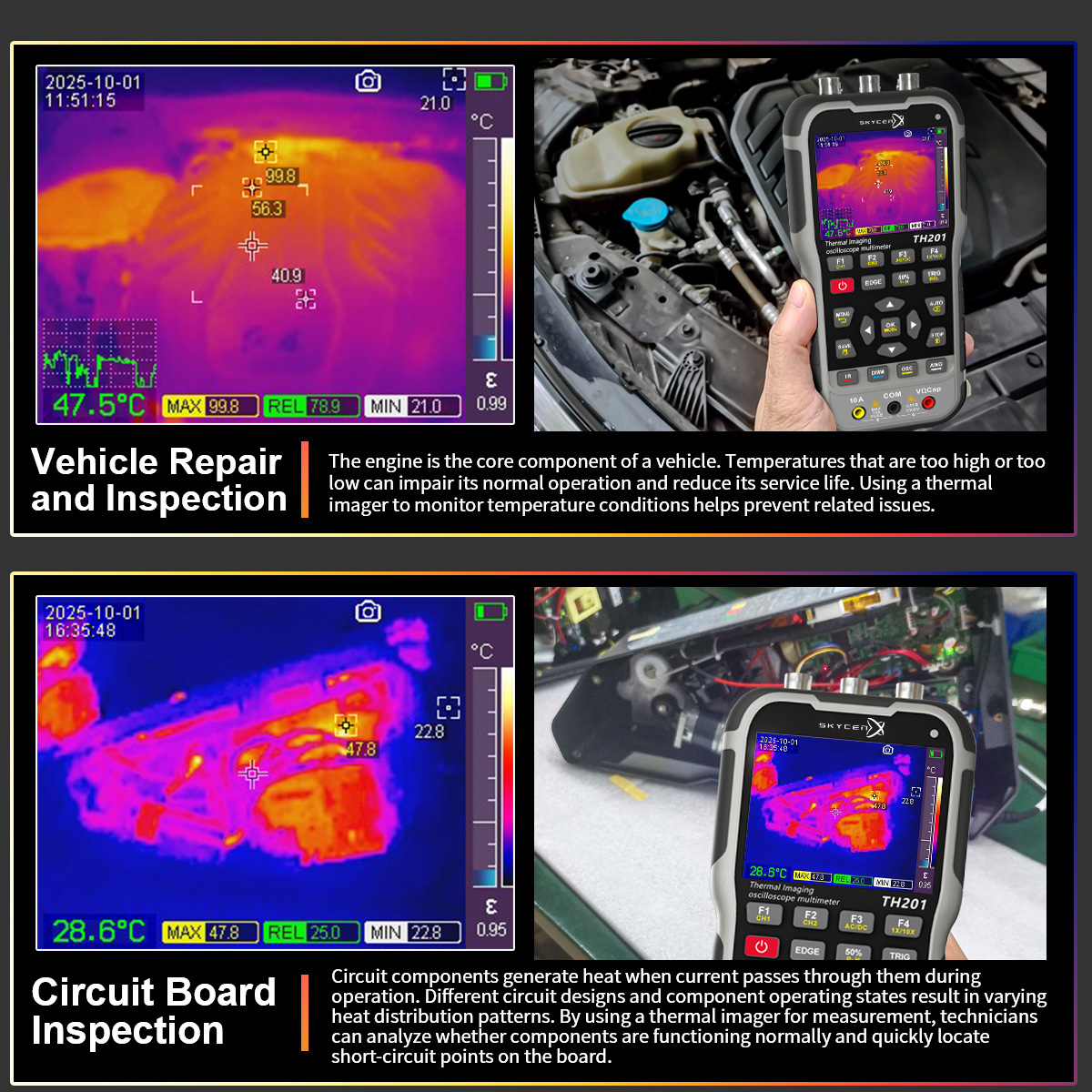

Applications
TH201 is widely used in:
- ⚡ Electrical system troubleshooting
- 🔧 Industrial equipment maintenance
- ☀️ Solar inverter diagnostics
- 🚗 Automotive electronics testing
- 🏭 Factory automation systems
- 🔬 R&D and laboratory signal analysis

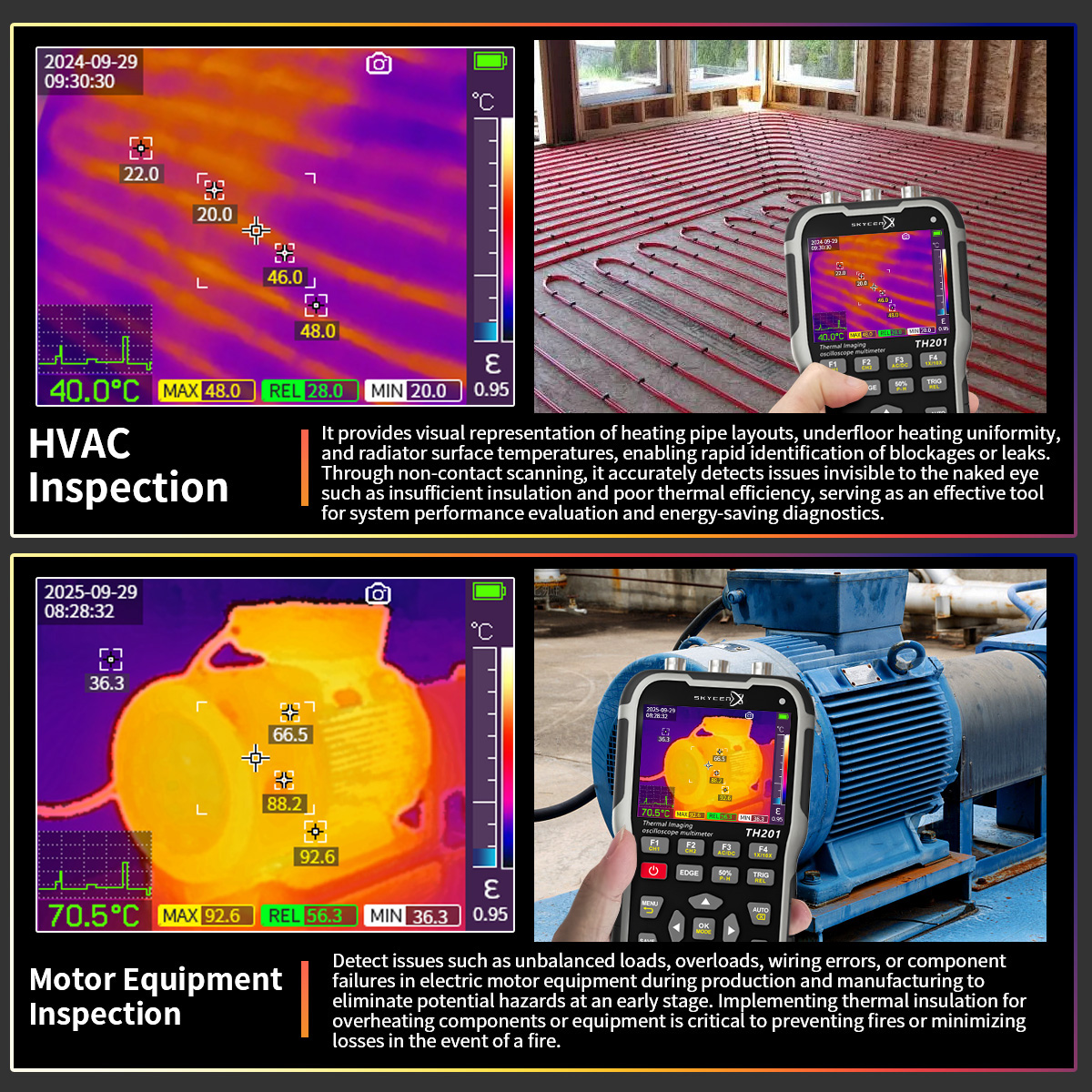

- 🔥 Overheating detection in power systems

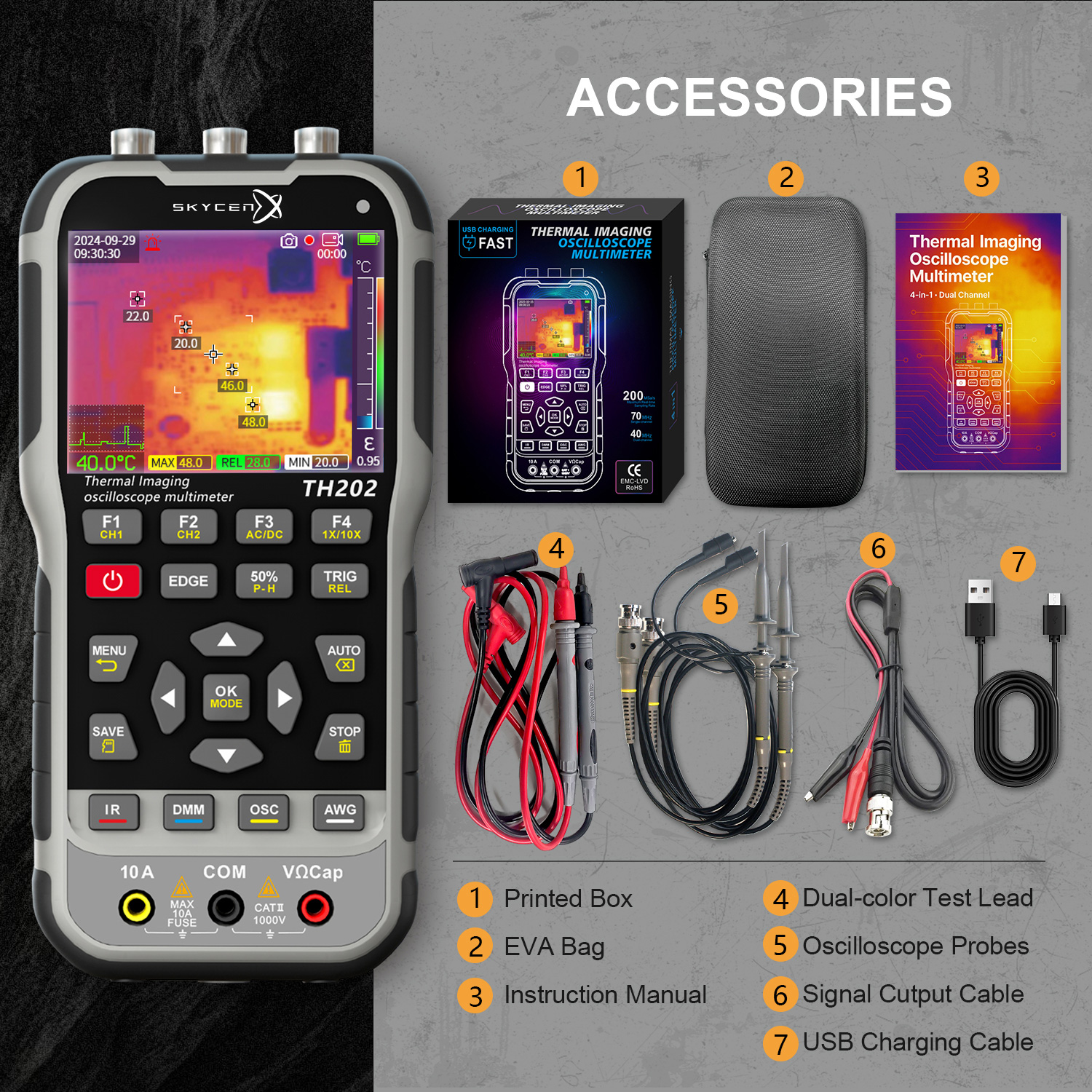

Package Includes

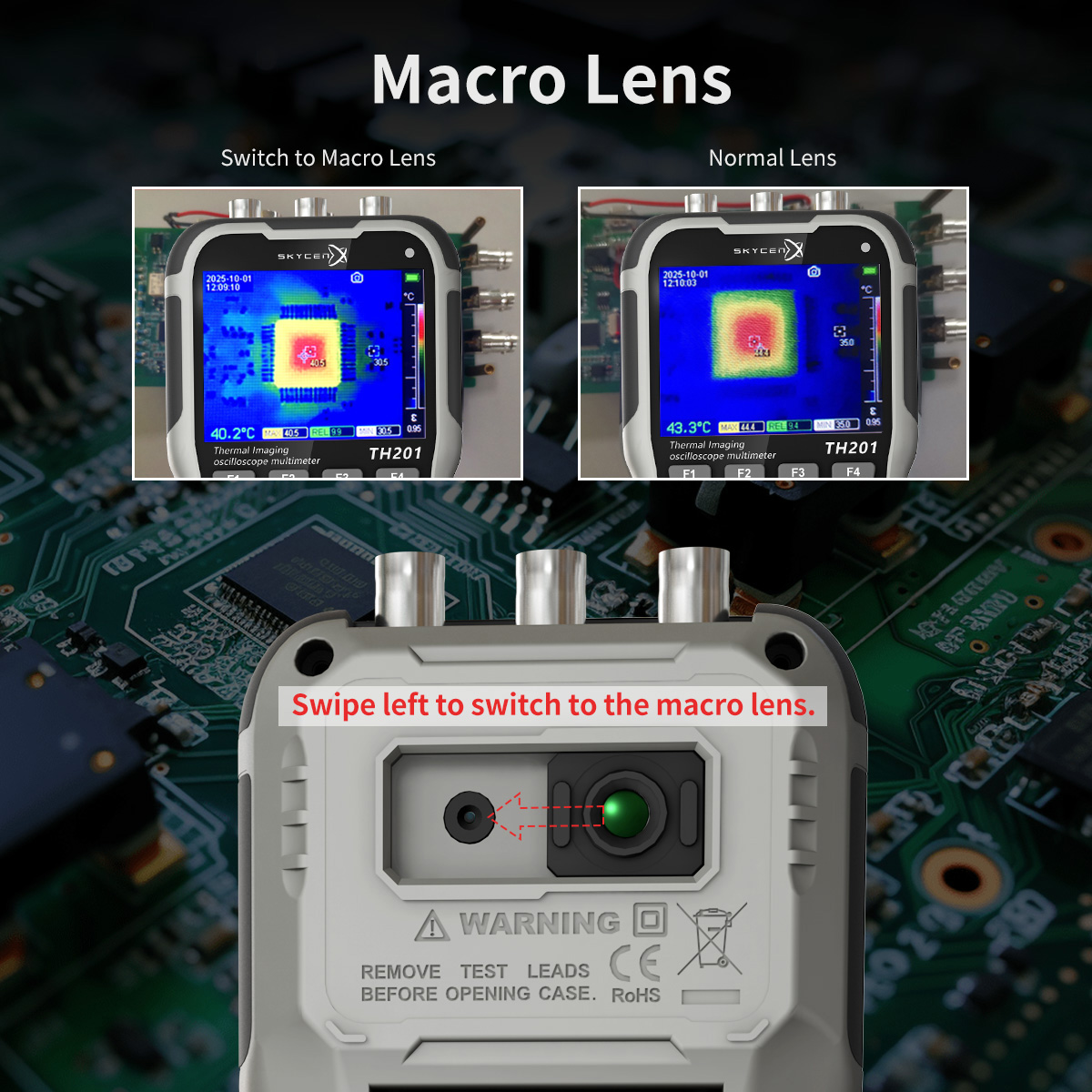

- 1 × TH201 4-in-1 Handheld Oscilloscope Multimeter (with built-in macro lens)
- Standard accessories set (test leads, probes, etc.)
